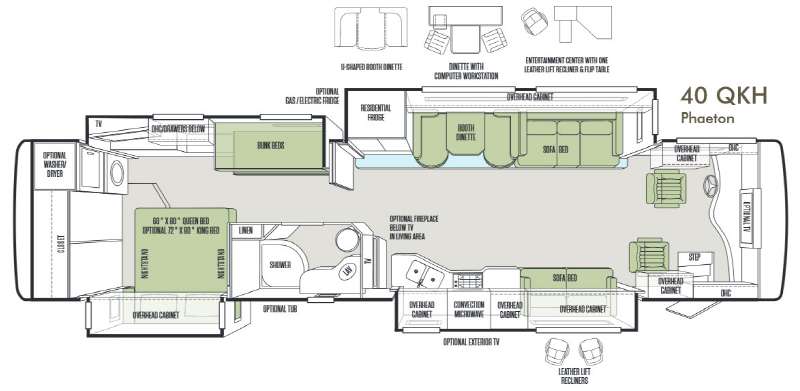

Used 2014 Tiffin Motorhomes Phaeton 40 QKH

• Raised Rail Chassis Frame Air Ride (4 Air Bags up to 40', Air Bags on 42')
• Aluminum Wheels
• Exhaust Brake (36' & 40')
• Compression Brake (42')
• Adjustable Accelerator & Brake Pedals
• Allison 3000 MH 6-speed Automatic Transmission
• Air Brakes with Automatic Slack Adjusters & ABS
• 55° Wheel Cut
• Fog Lights
• Daytime Running Lights
• 18" VIP Steering Wheel
• Cruise Control
• Emergency Start Switch
• Overall Width: 101"
• Interior Width: 96"
• Fresh Water (Gallons): 90
• Black Water (Gallons): 50
• Grey Water (Gallons): 66
• LPG Tank (Gallons; can only be filled to 80% capacity): 35.7
• Basement Storage (Cubic Feet, Approximate): 36 GH, 111: 40 AH, 157; 40 QBH, 157; 40 QKH, 157; 40 QTH, 157; 42 LH, 152
• Wheel Base: 36 GH, 228": 40 AH, 266"; 40 QBH, 266"; 40 QKH, 266"; 40 QTH, 266"; 42 LH, 272"
• Tire Size: 275/80R22.5
• Minimum Garage Height: 13'
• Steel/Aluminum Reinforced Structure

• Cummins ISL 450 HP/1250 lb Torque (42 LH)
• GVWR: 35,320 lb (Except on 42 LH: 44,320 lb)
• GAWR – Front: 14,320 lb
• GAWR – Rear: 21,000 lb (Except on 42': 20,000 lb)
• GAWR – Tag Axle: NA (42' Only: 10,000 lb)
• GCWR: 45,320 lb (Except on 42': 54,320)
• DEF Tank† (Gallons): 13
• Alternator Amps: 160
• *Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards.
• *All options may not be available on every model. Because of progressive improvements, specifications, standard & optional equipment are subject to change without notice or obligation.

• One-piece, moisture resistant molded fiberglass roof cap provides insulation and strength and prevents water intrusion.
• A/C Condensation Drainage System that runs internally through the roof insulation and down the sidewalls, redirecting water underneath the motor home.
• 5 1/2" formed insulation
• Quiet Air Cooling System with return air and foil-wrapped cooling exhaust ducts
• Durable, tubular aluminum roof skeleton
• Easy-to-clean soft touch vinyl ceiling panel

• Gel-coat fiberglass outside wall panel
• High-performance thermal insulation
• Durable, yet lightweight, tubular aluminum wall skeleton
• Decorative inside wall panel
• All sidewalls are approximately 2" thick

• Porcelain tile floor bonded to high-impact oriented strand board
• High-level engineered oriented strand board
• High-performance thermal insulation
• Durable, tubular floor skeleton
• Woven moisture barrier material

 GENERAL INTERIOR

• 7' Ceilings
• LED Bulbs
• Soft Touch Vinyl Ceiling with Trey Ceiling in Living Area
• Porcelain Tile Floor Throughout Coach
• Scotchgard® Treated Carpet in Slideouts
• High Gloss Raised Panel Hardwood Cabinet Doors
• Two Ducted Furnaces
• Solid Wood Cabinet Fascias & Doors with Concealed Hinges
• Complete Cable Wiring (Interfacing with Surround Sound & Satellite System)
• Home Theater Sound System with Concealed Speakers
• Chainless Solar/Privacy Shades
• Tank Level Monitor System
• Carbon Monoxide, LPG, & Smoke Detectors
• Electric Step Well Cover
• Wardrobe with Automatic Light
• Fantastic® Power Roof Vents with 3-speed Fans
• 12 V Disconnect Switch
• Direct TV® Receiver (Requires Subscription)

AVAILABLE OPTIONS:

• Medium Alderwood or English Chestnut Cabinets
• Stacked Washer/Dryer
• Central Vacuum Cleaner

DRIVER COMPARTMENT/COCKPIT

• Power Ultra Leather Driver & Passenger Seats with Passenger Footrest
• USB Dash Receptacle
• Contemporary Wraparound Dash
• Courtesy Light & Drawer in Step Well
• Dual Dash Fans
• Two Drawers in Dash
• Dual 12 V Dash Receptacle
• Single CD Player & AM/FM Stereo
• Fire Extinguisher
• Computer Slide-out Tray with Lock-out Rails on Passenger Side
• Power Solar/Privacy Windshield Shade
• Driver/Passenger Side Window Solar/Privacy Shades
• Color Rear Vision Monitor System with Side-view Cameras Activated by Turn Signals
• Adjustable Seatbelt Brackets
• Satellite-ready Radio (Requires Subscription)

AVAILABLE OPTIONS:

• Front Overhead TV
• In-dash Navigational System
• High-definition programming is not available on domed satellite antenna unless you subscribe to DISH Network®

LIVING AREA/DINETTE SPECIFICATIONS

• Booth Dinette with Laminate Tabletop & Solid Surface Edging
• TV in Entertainment Center (NA on 36 GH & 42 LH)
• Ultra Leather DE Sleeper/Sofa on Passenger Side (NA on 36 GH)

AVAILABLE OPTIONS:

• Dinette with Computer Workstation
• Ultra Leather U-shaped Booth Dinette
• Ultra Leather L-shaped Chaise Sofa/Sleeper on Driver Side (36 GH, 40 AH, and 42 LH Only)
• Ultra Leather DE Sleeper/Sofa on Driver Side (NA on 36 GH & 42 LH)
• Ultra Leather Hide-A-Bed Sleeper/Sofa on Driver Side (NA on 42 LH)
• Ultra Leather Magic Bed on Driver Side (NA on 42 LH & 36 GH)
• Ultra Leather Magic Bed on Passenger Side (42 LH Only)
• Two Leather Lift Recliners on Driver Side (36 GH and 42 LH: NA)
• Entertainment Center with One Leather Lift Recliner & Flip Table on Driver Side (Deletes Midsection TV) (40 QBH, 40 QKH, 40 QTH Only)
• Entertainment Center with One Leather Lift Recliner on Passenger Side (42 LH & 36 GH Only)
• Entertainment Center with Two Leather Lift Recliners on Passenger Side (42 LH & 36 GH Only)
• Fireplace Below Living Room TV
• Ultra Leather Air Coil Hide-A-Bed Sleeper/Sofa on Passenger Side (NA on 42 LH)

KITCHEN

• Solid Surface Countertop with Stainless Steel Sink
• Solid Surface Sink Covers
• Sink Cover Storage Racks Underneath Sink
• Permanent Mounted Folding Solid Surface Cooktop Cover
• Expand-an-island
• Single Lever Sink Faucet with Sprayer
• Galley Splash Guards
• Built-in Soap Dispenser
• Built-in Waste Can (NA with Dishwasher)
• Residential Stainless Steel Refrigerator with Ice & Water Dispenser in Door
• 3-burner Stainless Steel Cooktop
• Stainless Steel Microwave/Convection Oven

AVAILABLE OPTIONS:

• Dishwasher (Deletes Built-in Waste Can)
• 4-door Gas/Electric Refrigerator with 4 Batteries

BATH

• Medicine Cabinet with Vanity Lights
• Skylight in Shower with Sliding Cover & LED Light
• Solid Surface Vanity Top & Bowl
• Spray Cleaner on Toilet
• Solid Wood Custom Privacy Door
• 3-speed Fantastic® Fan
• Hand-held Shower Head with On/Off Switch
• 10-gallon DSI Gas/Electric Water Heater
• Rectangular Shower Surround (36 GH and 40 AH)
• Radius Shower Surround (40 QBH, 40 QKH, 40 QTH, 42 LH)

AVAILABLE OPTIONS:

• Tub in Place of Shower (40 QKH Only)
• Tankless Gas Water Heater
• BEDROOM
• Bed Comforter with Throw Pillows
• Wood/Fabric Headboard
• Under Bed Storage
• Pillow Top Mattress (60" x 80")
• Ceiling Fan
• TV Pre-wired for DVD & Satellite Receiver
• Chest of Drawers with Laundry Hamper
• Direct TV® Receiver (Requires Subscription)
• DVD Player for Surround Sound

AVAILABLE OPTIONS:

• Bunk Beds with Ladder/Convertible Wardrobe (40 QKH Only)
• DVD Monitors in Bunk Beds (40 QKH Only)
• King Bed Mattress (72” x 80”) (NA on 36 GH)
• Air Comfort Queen or King Mattress
• Jamison Foam Queen or King Mattress
• Tile Flooring in Bedroom (NA on 40 QBH, 40 QKH, & 40 QTH)
• Wardrobe (in place of lavatory on Passenger Side) (36 GH Only)

• Hydraulic Automatic Leveling Jacks
• Large Tinted One-piece Windshield
• Heated Power Mirrors with Integrated Cameras
• Single Motor Intermittent Wiper
• Lockable Swing-out Storage Doors with Gas Shocks
• Window Awning Package (2 Windows)
• BASF Full Body Paint with Protective Film on Front Cap
• Remote Locking System for Entry Door
• Deadbolt Front Entrance Door
• Fiberglass Front & Rear Caps
• Double Electric Step
• Docking Lights
• Flush Mounted & Painted-frame Dual Pane Windows
• Exterior Patio Light
• Automatic Door Awning
• Metal Wrapped Automatic Patio Awning
• Motion Sensor Lighting for Exterior Storage
• Gravity Water Fill
• Roof Ladder
• Heated Water & Holding Tank Compartments
• Six 6 V Auxiliary Batteries
• Black Tank Flush System
• Water Filter
• Undercoating
• Dual Fuel Fills
• Custom Mud Flap
• 110 V Exterior Receptacle
• Digital TV Antenna & Cable Ready TV
• Back-up Camera
• 2000 Watt Sine Wave Inverter with 100 Amp Converter & Transfer Switching
• 8.0 kw Onan® Manual Slide-Out Generator (NA on 42 QBH & 42 LH)
• 10.0 kw Onan® Manual Slide-Out Generator (42 QBH & 42 LH: S; NA for others)
• Two Low Profile Roof Air Conditioners with Heat Pumps (42 QBH & 42 LH: NA)
• Three Low Profile Roof Air Conditioners with Heat Pumps Requires 10.0 kw Generator (NA on 36 GH & 36 QSH)

AVAILABLE OPTIONS:

• One or Two Storage Compartment Slide-out Tray(s) (2 NA on 36 GH)
• Air Horns
• In-motion or Automatic Satellite Dish*
• Pre-wired for Winegard Trav’ler Satellite (NA with in-motion Automatic Satellite)
• Exterior TV
• *High-definition programming is not available on a domed satellite antenna unless you subscribe to DISH Network.

All standard features and specifications are subject to change.
